Basic Info |
|
|---|---|
| Model NO: | MM2x2-1400-0-0-0 |
| Usage: | Radio |
| Type: | Td-Cofdm, Bpsk/Qpsk/16qam/64qam/256qam Adaptive |
| Transport Package: | Box |
| Trademark: | WDS |
| HS Code: | 8517709000 |
| Work Mode: | Multipoint-to-Multipoint, Automatic Relay |
| Information Content: | Picture, Video, Audio, Data |
| RF Output Power: | 10 watts x2 Vehicular Rack-Mounted |

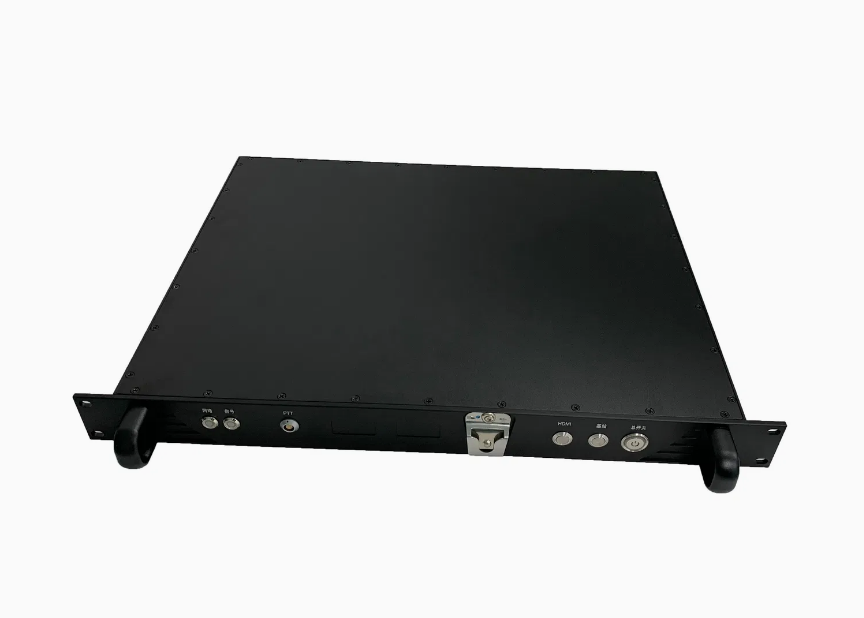

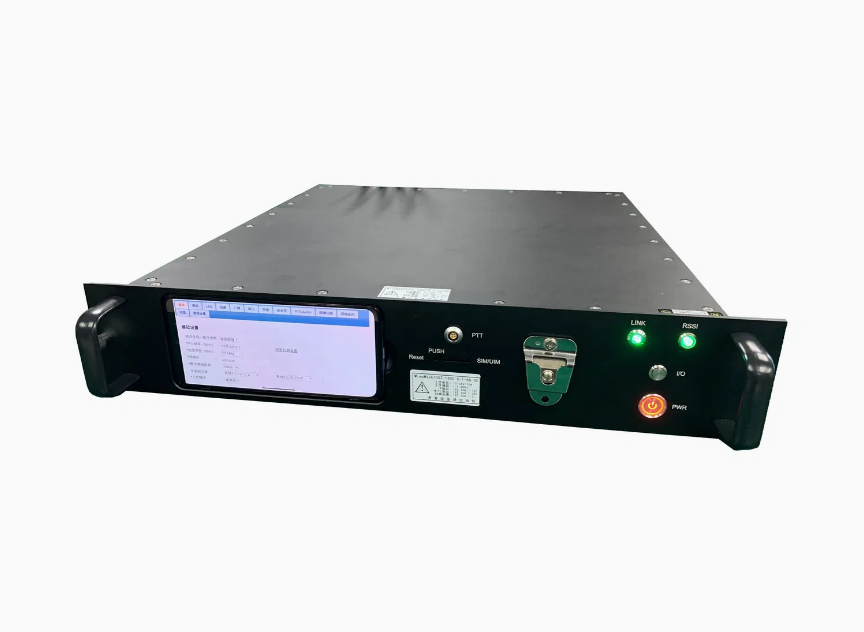

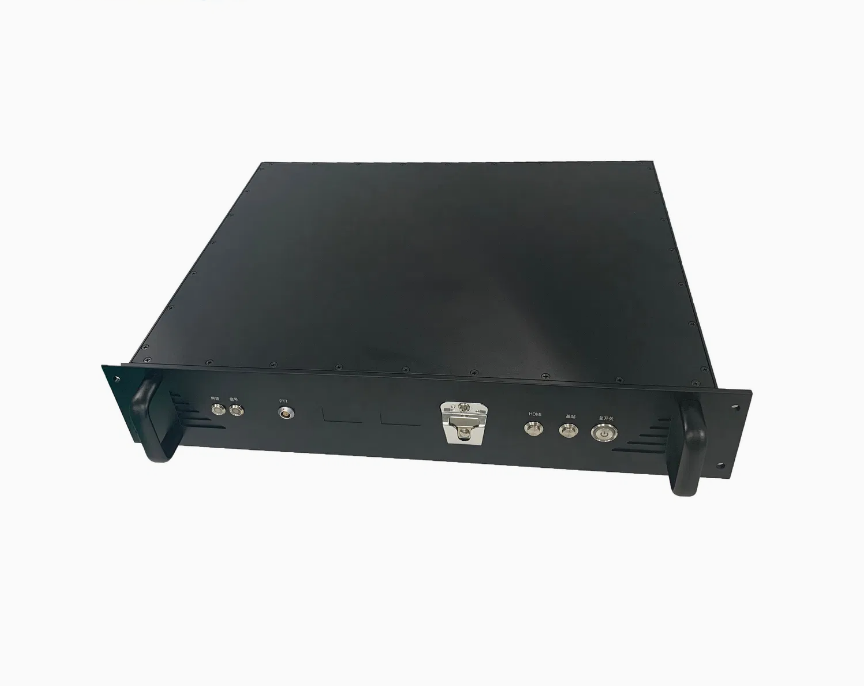

| Specification: | Vehicular Rack-mounted |
| Origin: | China |
| Production Capacity: | 10000 |
General Specifications |
|
| Waveform/SDR Platform: | Mobile network MANET+MIMO/9361+72030 or 72100 (maximum 40MHz BW) |
| MIMO Technology: | Space-time coding, Receive Diversity, TX/RX beamforming, Spatial multiplexing |
| Receive Sensitivity: | -103dBm@5MHz BW |
| Channel Bandwidth: | 2.5/5/10/20MHz, 40MHz optional; FDD by dual-antennas with two-frequency transceiver (Carrier Aggregation) optional |
| Data Rate: | 1-100Mbps(20MHz BW) / 180Mbps(40MHz BW) Adaptive, QoS |
| Modulation Mode: | TD-COFDM, BPSK/QPSK/16QAM/64QAM/1024QAM Adaptive (Fixed setting optional) |
| RF Output Power: | 10Watts×2, 20Watts×2 (Power adaptive optional) |
| Single Hop Communication Distance: | 100-300 KM (LOS), 1-30 KM (urban area) |
| Mode: | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing, Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay: | Average 7ms(20MHz BW) |
| Encryption: | DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized |
| Anti-jamming Mode: | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band frequency hopping/Roaming mode optional |
| Local/Remote Management: | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade, Remote silence and wake-up option. |
Bands (70M-6GHz) |
|
| UHF: | 430-550/570-700/800-950, 225-400/320-470*MHz |
| L Band: | 1000-1200/1300-1500/1600-1800/2000, 1200-1700*MHz |
| MIIT: | 336-344/512-582/566-626/606-678/1420-1520/1430-1444MHz |
| S Band: | 2.3-2.5/2.5-2.7/2.7-2.9 GHz |
| C Band: | 4.4-5.0/5.25-5.85, 4.2-5.5/5.0-6*GHz |
Environmental |
|
| Operation Temperature: | -40°C ~ +80°C |
| Protection Level: | IP66, IP67, IP68 Customized |
Mechanical |
|
| Size/Weight: | 19.1x16.4x6.3cm/1.6kg (10Watts×2/ 20Watts×2) |
| Installation/Color: | 4 Mounting Holes/Black, Iron Gray, Army Green Optional |
Power |
|
| Supply Voltage: | 18-24/18-36VDC (10Watts×2/ 20Watts×2) |
| Power Consumption: | Operation 3-6A/Standby 0.7-0.9A@24V, 10Watts×2; Operation 6-7A/Standby 0.7-0.9A@24V, 20Watts×2 |
| Power Selection: | Main Cable |
Interface |
|
| Basic Interface: | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP, GPS/BD, RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
| Push to talk/Auxiliary Interface: | MIC, SPPT, T/GND, RS485/422, USB2.0OTG |
| Network Extension: | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension: | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator: | Steady red - The network is not connected; Blinking red - Starting/not connected to the network; Steady green - The network is connected; Blinking green - Voice PTT is down |
| RSSI Link Indicator: | Steady green - The link quality is excellent; Blue Steady - The link quality is good; Steady yellow - The link quality is medium; Steady purple - The link quality is slightly unstable; Steady red - The link quality is poor or link is down |
| Management Interface/Control Interface: | Web-based network management/GUI, API secondary development interface/SNMP |
