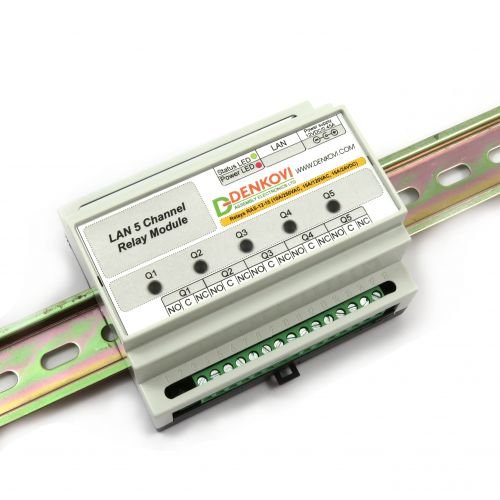

Ethernet Relay Card 5 Channels - SNMP, HTTPXML, Real Time Clock, DIN BOX

$119

2 Years Return Guarantee
Free Global Shipping
24-7 Customer Support

PDF

Project Description
Additional Information

Five channel Ethernet relay card based on DAEnetIP4 snmp IP controller. Supports independent weekly schedule for up to 30 events without connection to computer. Control it from web browser, DRM and DRMv3 software, command line tool, free Android and iOS App and others. Flexible for integration. For developers we provide software examples in Java, .NET, Labview, PHP. Works with Home Assistant, Domoticz and OpenHAB home automation systems as well as with Node-RED IoT platform. The relay card can be used for home automation, industrials, sensor monitoring or embedding in larger systems. This is the DIN Rail Box version.

Functions:
10/100 Full duplex Ethernet interface (Auto MDIX);
5 SPDT relays;

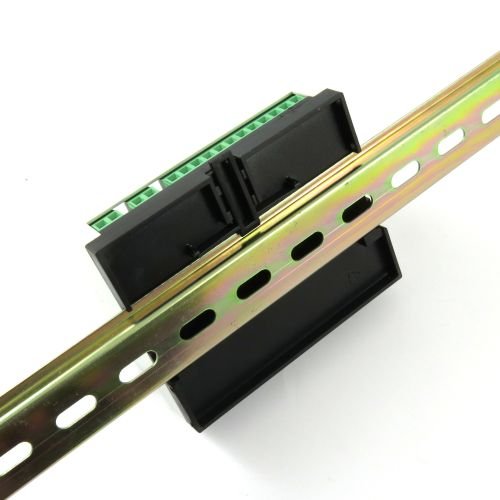

DIN Rail enclosure;
Hardware "Pulse" function for the relays;
Standart protocols: ARP, IP, ICMP (ping), DHCP, DNS,NTP;
SNMPv1 - snmpset, snmpget, snmptrap, snmpbulk, snmpgetnext, snmptable,snmpwalk;
SNMPv1 Traps upon analog input, digital input event or boot;
HTTP access - via web browser (integrated WEB server for all functions/parameters access with autorization);
HTTP/XML commands including support for encrypted requests;
JSON protocol;
Built-in Real Time Clock (RTC) with back-up power supply source for days;
Weekly schedule table for up to 30 records - the module it can work without PC connected;
The ports for HTTP, SNMP and Traps can be changed;
Function "load outputs states from EEPROM on boot";
Each relay can be named by user via web browser/snmp;
Can be controlled from smartDEN IP-32IN IP Module over the network ("box to box" mode);
iOS software - DAE-iModules App;
Supported by DRMv3 Software
Supported by DRM Software;
Android software - DAE-aModules App;
Software examples for PHP, JAVA, VB.NET, C#.NET and NI LabView
Compatible various third party software: net-snmp, MRTG...
Supported by Home Assistant home automation software
Supported by openHAB home automation software;
Supported by Domoticz home automation software;
Supported by Node-RED IoT platform;

Application examples:
Electrical appliances remote control applications
Home automation
Irrigation systems
Security and fire alarm systems
Remote Lock/unlock doors
Suitable for school and university education

Size L x W x H, mm:	150 x 85 x 58
Weight, g:	150
Power supply voltage,VDC:	12 or 24 (depends on the model) ±2
Maximum current consumption at 12VDC (when all relays are ON), mA:	210
Maximum current consumption at 24VDC (when all relays are ON), mA:	140
Standby current consumption at 12VDC (when all relays are OFF), mA:	70
Standby current consumption at 24VDC (when all relays are OFF), mA:	40
Operating temperature range, °C:	0 to 70
Relays count:	5
SPDT relay channels (the type depends on the stocks quantity in our store):	TONGLING - JQC-3FF-S-Z (10A / 250VAC, 15A / 120VAC, 10A / 28VDC) SUNHOLD - RAS xx15 (10A / 250VAC, 15A / 120VAC, 15A / 24VDC)
