Adjust the power level and frequency: If the Tramp Rx pin cable on VTx is connected with FC, then the button doesn't work.
Unlock/Lock the illeague frequencies and power levels: Long press the "KEY" button until the Red LED (PWR) isconstant on, then off, when it is on again, release the button,unlock/lock the illegal frequencies and power levels, flashedRed LED is unlocked, constant Red LED is locked.
PIT On/Off: Double-click the "KEY" button to turn on/off thePIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

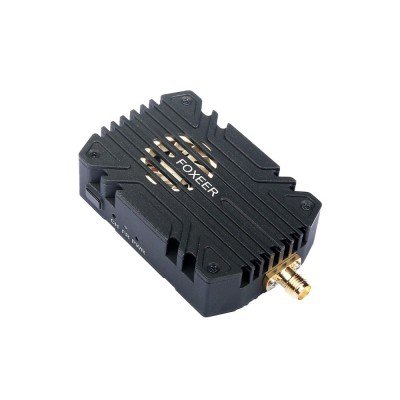

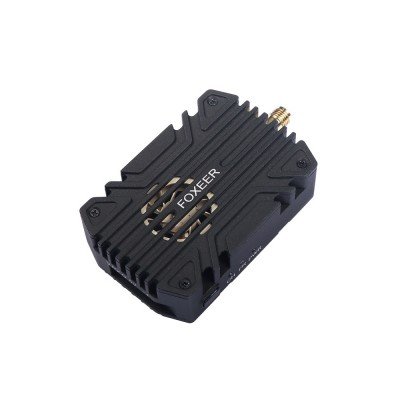

| Name: | Reaper Infinity |
| Input Voltage: | 9~36V |
| Output Voltage: | 5V |
| Channels: | 40CH |
| Power: | 50mW/500mW/1000mW/2500mW/5000mW, red light flash 1/2/3/4/5 times correspondingly |
| Pit: | Double click to enter |
| Weight: | 58g |
| Mounting Hole: | 20*20mm M2 |
| Size: | 72*41*17mm |
| Connector: | SMA |
| Consumption: | 9V/3A; 36V/0.8A |
