Sprintlink 5W is built especially for the scenario where the communication range is above 100km. With a 16dpi antenna panel and SprintTracker on the ground, its communication range is from 100km to 150km. Also with re-transmission and adaptive frequency hopping, the module secures the transmission quality steadily.
Sprintlink 5w adopts private COFDM protocol, features long range transmission, high sensitivity and high throughput.
Ultra-high bandwidth and stream support can easily handle 4K resolution video data streams. 200ms screen-to-screen low latency and good delay jitter-sensitive control, meeting the end-to-end real-time requirements of video data.
Software Defined Radio (SDR)
The realization of modifiability of the communication underlying protocol gives the system the ability to continuously evolve and optimize;
Fully and effectively verify the improvement of chipization, and greatly reduce the risk of tape-out;
Flexible customization to improve design-win capabilities
Orthogonal Frequency Division Multiplexing (OFDM)
Effectively eliminate multipath interference under long-distance transmission
Low Density Check Code (LDPC)
The self-optimized design of QC-LDPC gives the system excellent error correction performance and greatly improves the receiving performance.
RC Link Specifications |
|
|---|---|
| Frequency: | 1.4GHz |
| Bandwidth: | 2.5MHz (uplink); 10MHz(downlink) |
| Power: | 37dBm |
| Modulation: | OFDM |
| Constellation: | FEC:BPSK; QPSK; 16QAM |
| Duplex: | TDD |
| Downlink throughput: | 2.3Mbps ~ 10Mbps(10MHz) |
| Uplink throughput: | 115200bps |
| Voltage: | 18V~22V |
| Working temperature: | -20°C ~50°C |
| Size: | 143.9X122.3X38mm |
| Weight: | 732g |

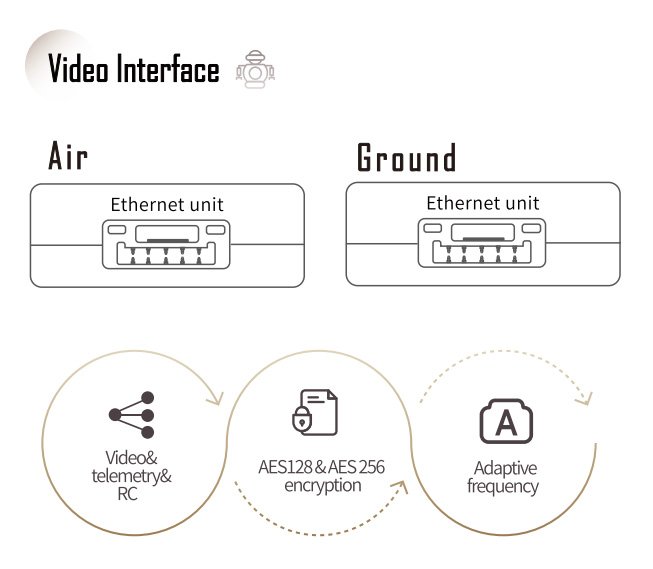

| Video Interface: | Ethernet |
| Other Interface: | Serial; PPM/S.bus;USB |
| Communication distance: | 150km |
Interface |
|
| Video input interface: | Ethernet/HDMI |
| Video output interface: | Ethernet/HDMI |
| Video protocol: | TCP/UDP |
| Telemetry input port: | Serial;TTL |
| Telemetry output port: | Serial;TTL |
| Frequency: | 1.4GHz |
| Distance: | 100Km |
| Downlink throughput: | 10Mbps(Max) |
| Uplink throughput: | 300Kbps(Max) |
| Max of power: | 33dBm |
Telemetry |
|
| Distance: | 100km |
| Telemetry input port: | 115200bps(Max) |
| Telemetry output port: | 115200bps(Max) |
Tracker |
|
| YAW stability enhancement accuracy: | ±1° |
| YAW rotation range: | Unlimited |
| PITCH rotation range: | -15~135° |
| Max turning rate: | 300 °/s |
| Consumption: | 30W |
| Working temperature: | -20~50℃ |
| Storage temperature: | -20~60℃ |
| Working humidity: | 20%~70% |
